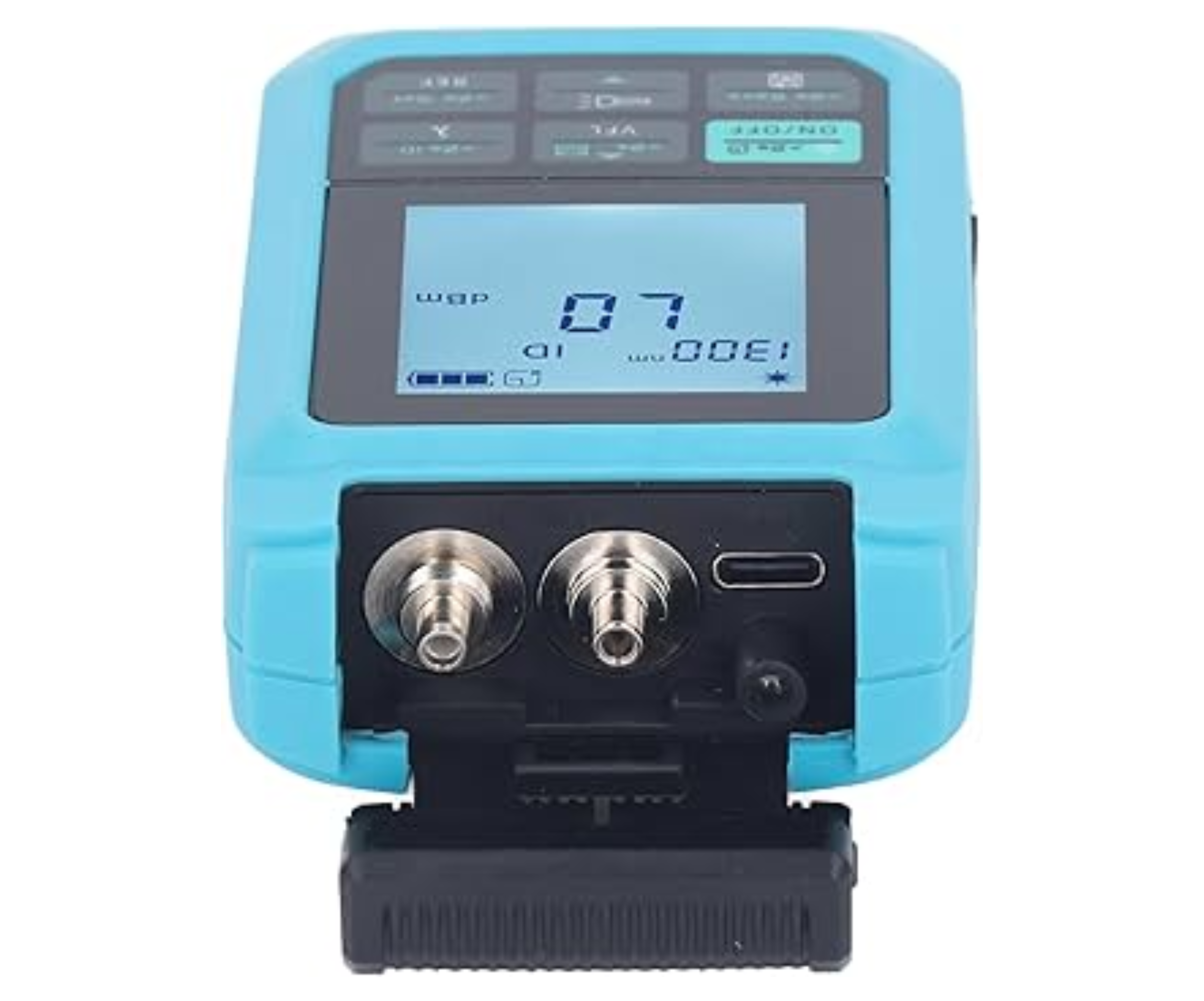

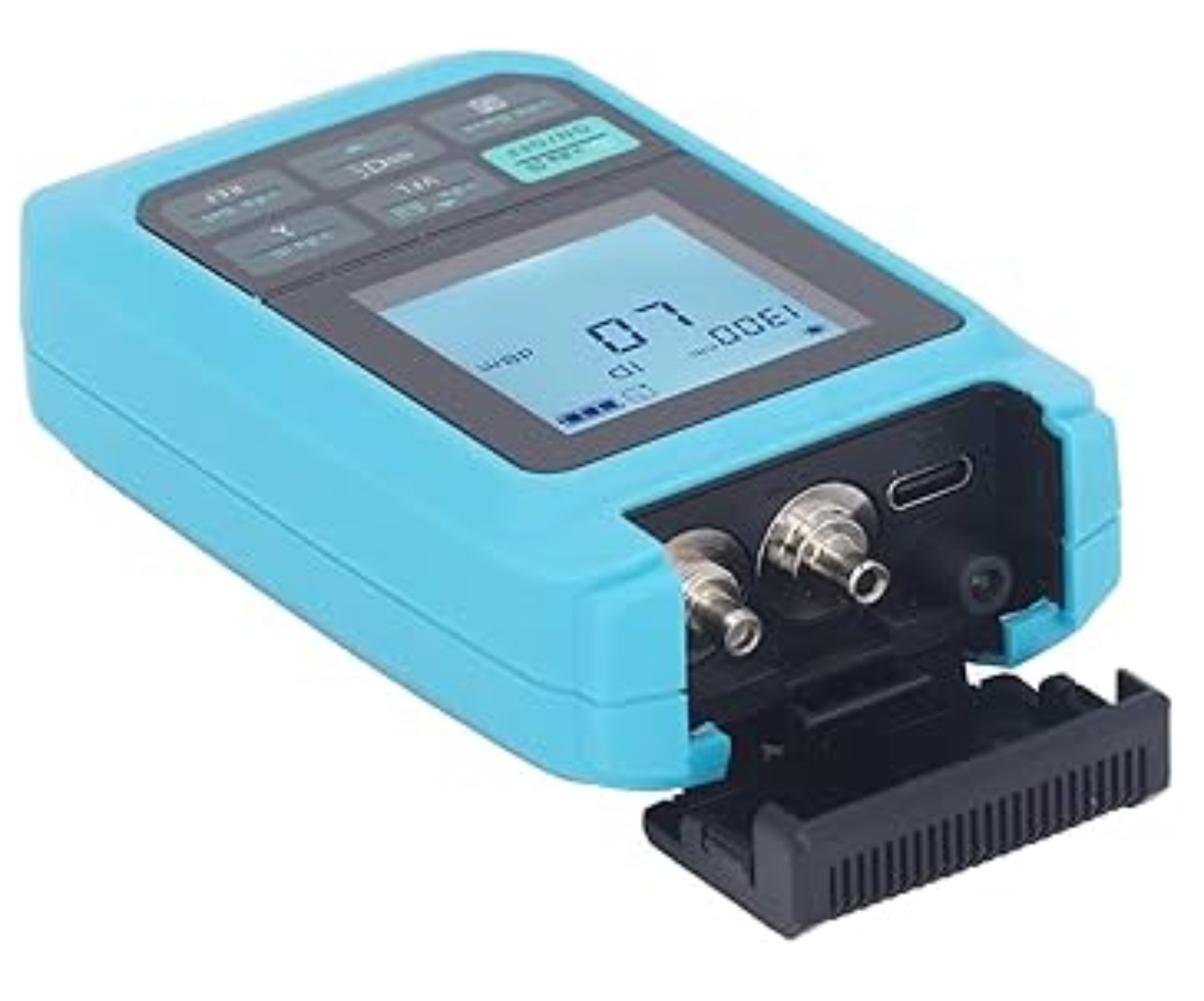

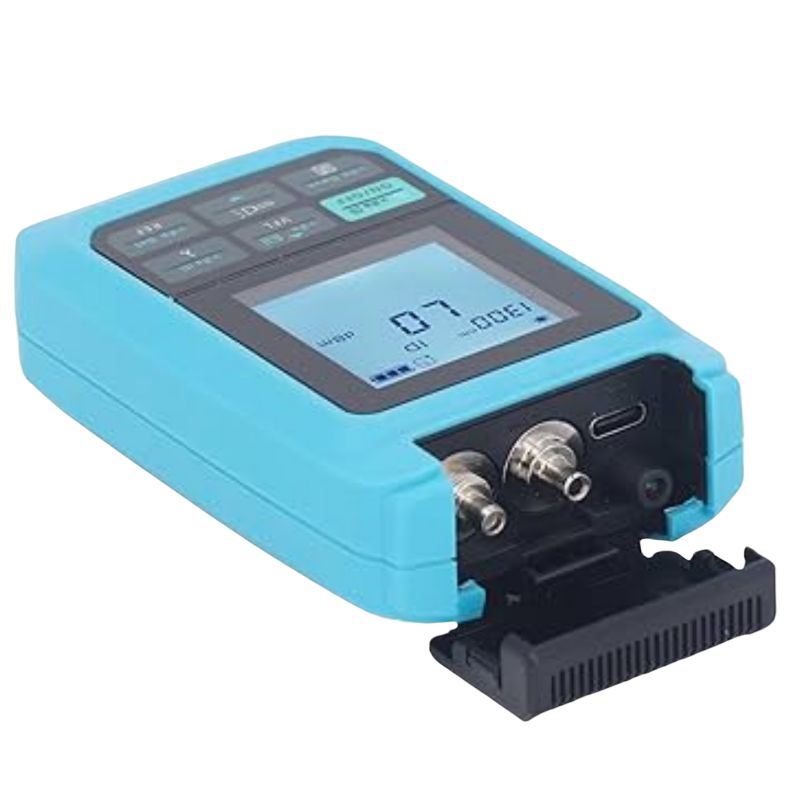

Optical Power Meter Mini with VFL 10mw 28
Discover our latest products and services
.png)
Product Info
- Unit: pc(1)
- Product ID: 857
About Product:
- Wide Utility: Ideal for fiber optic cable construction, maintenance, communication, sensing, and optical CAT applications.
- Versatile Functions: Compact design with automatic power-off, adjustable power, wavelength memory, frequency recognition, lighting support, and storage capabilities.
- Smart Testing: Supports SC, FC, and ST interfaces, with options for linear nW and nonlinear dB indicators and RJ45 testing.
- Premium Design: ergonomically designed body with durable cold molding for aesthetics and longevity.
- Easy Portability: compact and lightweight, perfect for convenient outdoor use.
Product Specification:
| Specification | Details |
|---|---|
| Item Type | Optical Fiber Power Meter |
| Power Meter Detector Type | InGaAs |
| Power Meter Interface | 2.5mm Universal Interface |
| Calibration Wavelength | 850-1652nm |
| Measurement Range | Type A, -70~+3dBm. |
| Resolution | 0.01dB |
| Accuracy | ± 0.20dB |
| Frequency Recognition | 270Hz, 330Hz, 1KHz, 2KHz |
| Wavelength Recognition | Supporting it requires compatible light source |
| Red Light Source Interface | FC, SC, and ST 2.5mm Universal Interface |
| Red Light Source Output Power | <30mW |
| LED Flashlight | Supporting |
| Network Cable Sequence Detection | RJ45 Interface |
| Data Interface | Type C Interface |
| Battery | 1 x 3.7V 450mAh lithium battery, shipped with built-in battery |
| Storage Temperature | -20-60 °C, <90% RH |
| Operating Temperature | -10-60 °C, <90% RH |
Here are some related Power Meter links below:
Optical Power Meter Mini with VFL 2mw
Product Specifications
- Warranty: 218-TRIAL-6 months 282
About Product:
- Wide Utility: Ideal for fiber optic cable construction, maintenance, communication, sensing, and optical CAT applications.
- Versatile Functions: Compact design with automatic power-off, adjustable power, wavelength memory, frequency recognition, lighting support, and storage capabilities.
- Smart Testing: Supports SC, FC, and ST interfaces, with options for linear nW and nonlinear dB indicators and RJ45 testing.
- Premium Design: ergonomically designed body with durable cold molding for aesthetics and longevity.
- Easy Portability: compact and lightweight, perfect for convenient outdoor use.
Product Specification:
| Specification | Details |
|---|---|
| Item Type | Optical Fiber Power Meter |
| Power Meter Detector Type | InGaAs |
| Power Meter Interface | 2.5mm Universal Interface |
| Calibration Wavelength | 850-1652nm |
| Measurement Range | Type A, -70~+3dBm. |
| Resolution | 0.01dB |
| Accuracy | ± 0.20dB |
| Frequency Recognition | 270Hz, 330Hz, 1KHz, 2KHz |
| Wavelength Recognition | Supporting it requires compatible light source |
| Red Light Source Interface | FC, SC, and ST 2.5mm Universal Interface |
| Red Light Source Output Power | <30mW |
| LED Flashlight | Supporting |
| Network Cable Sequence Detection | RJ45 Interface |
| Data Interface | Type C Interface |
| Battery | 1 x 3.7V 450mAh lithium battery, shipped with built-in battery |
| Storage Temperature | -20-60 °C, <90% RH |
| Operating Temperature | -10-60 °C, <90% RH |
Here are some related Power Meter links below:
Additional Specifications
| Base Unit | pc(1) |
|---|---|
| Category | Fiber Optical Testing Equipments |
| SKU | |
| Product Code | 80 |
| Trackable | Yes |
| Taxable | Yes |
