OTNS8600-DCI8 2U
Prduct Description:
OTNS8600-DCI8 is an optoelectronic integrated WDM transmission platform designed for Data Centre Interconnect (DCI) by Eman communications, features high integration (optoelectronic integration), large bandwidth (25.6Tbits / Fiber), simple deployment (no complicated tuning), easy operation and maintenance (NETCONF / YANG) and safety and reliability. It can meet the rapidly growing bandwidth demand between DCs, achieve flexible deployment of equipment, create an open optical network architecture and lead the DCI market into a new era of high-speed all-optical interconnection.
Product features
- Adopt optoelectronic integrated, pluggable modular design; components support hot-plugging, deploy and expand on demand.
- Front inlet air and rear outlet air cooling design, 2+1 FRU fan units available, automatic speed adjustment supported.
- 19" / 600mm Depth cabinet can be installed, suitable for data center rooms and can be deployed with IT equipment in common cabinets.
- Transmission capacity up to 25.6Tbit/s per pair @ C+ band 400G*64λ, up to 3.2Tbit/s per subrack.
- Single wave capacity up to 400G, continuous evolution towards 600G & 800G & 1.2T.
- Optical layer card highly integrated with OA, WSS, VOA, OSC, OTDR, OCM, OLP, etc. to simplify internal fiber connectivity.
- Supports 10GE, 100GE, 100GE FlexE (Unware), 400GE, STM-64, 10GE WAN, OTU2, OTU4 and other service access.
- Supports 9-degree ROADM networking and FlexGrid.
- Supports comprehensive performance monitoring and quality visibility at the service, OTN and optical layers.
- Provides multiple multi-layer network-level and device-level protection solutions. Protection reversal delay＜50ms, ensuring superior protection performance.
- Supports NETCONF/YANG standard open interface and GUI management platform based on B/S architectur.
Applications:

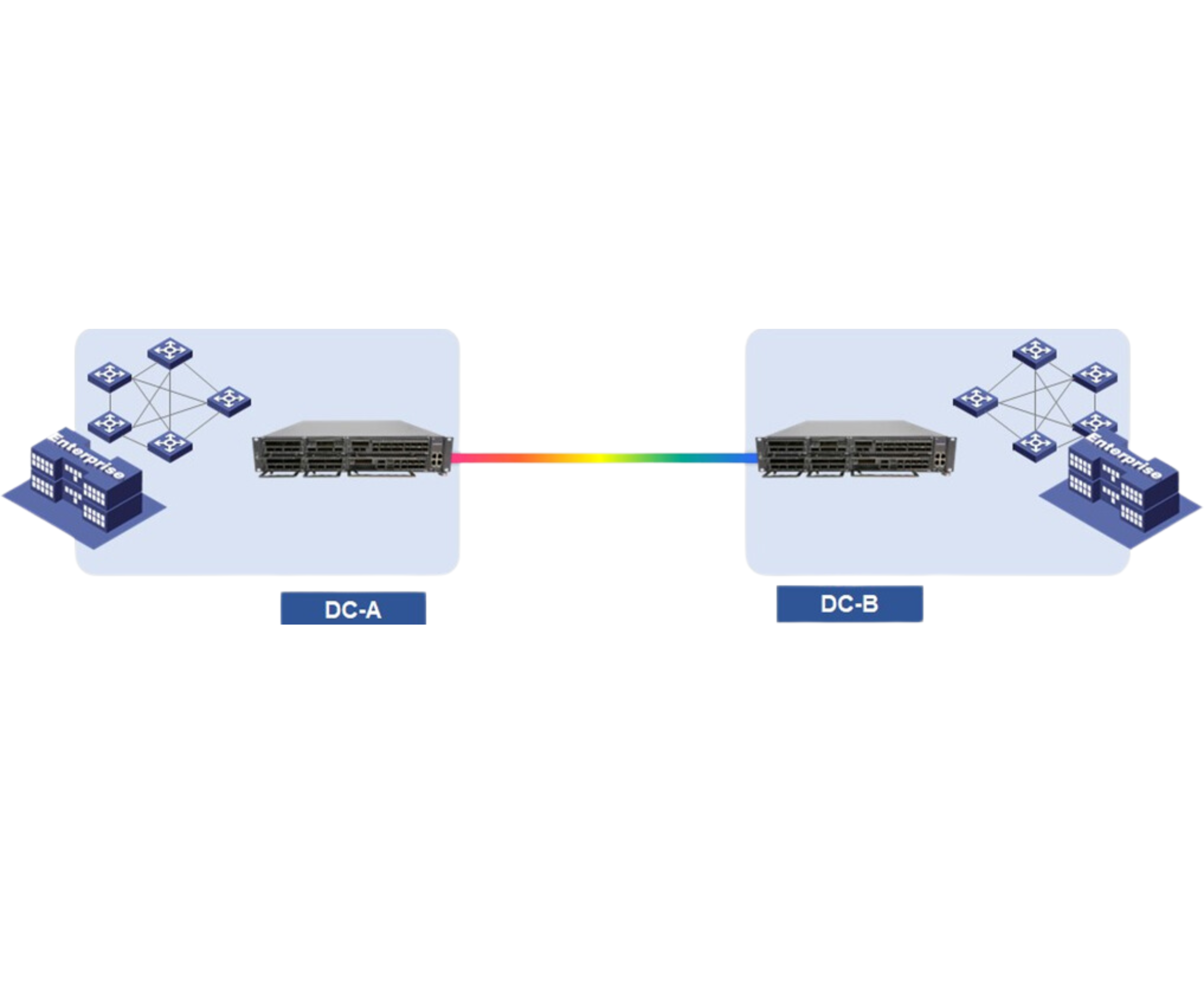

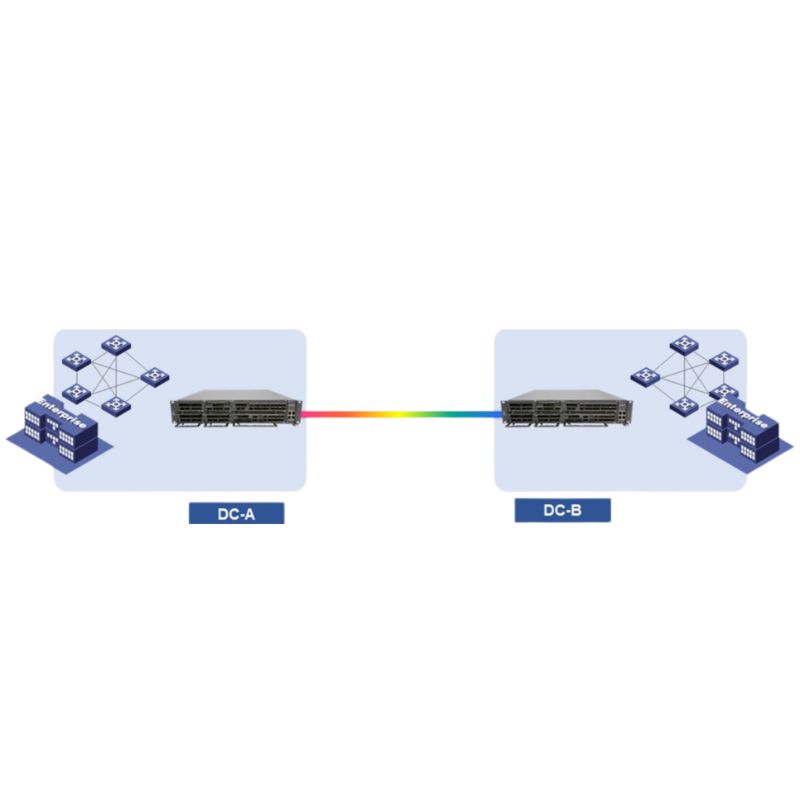

- Small network:
single platform with high density optical layer card + electrical layer card for point-to-point networks.

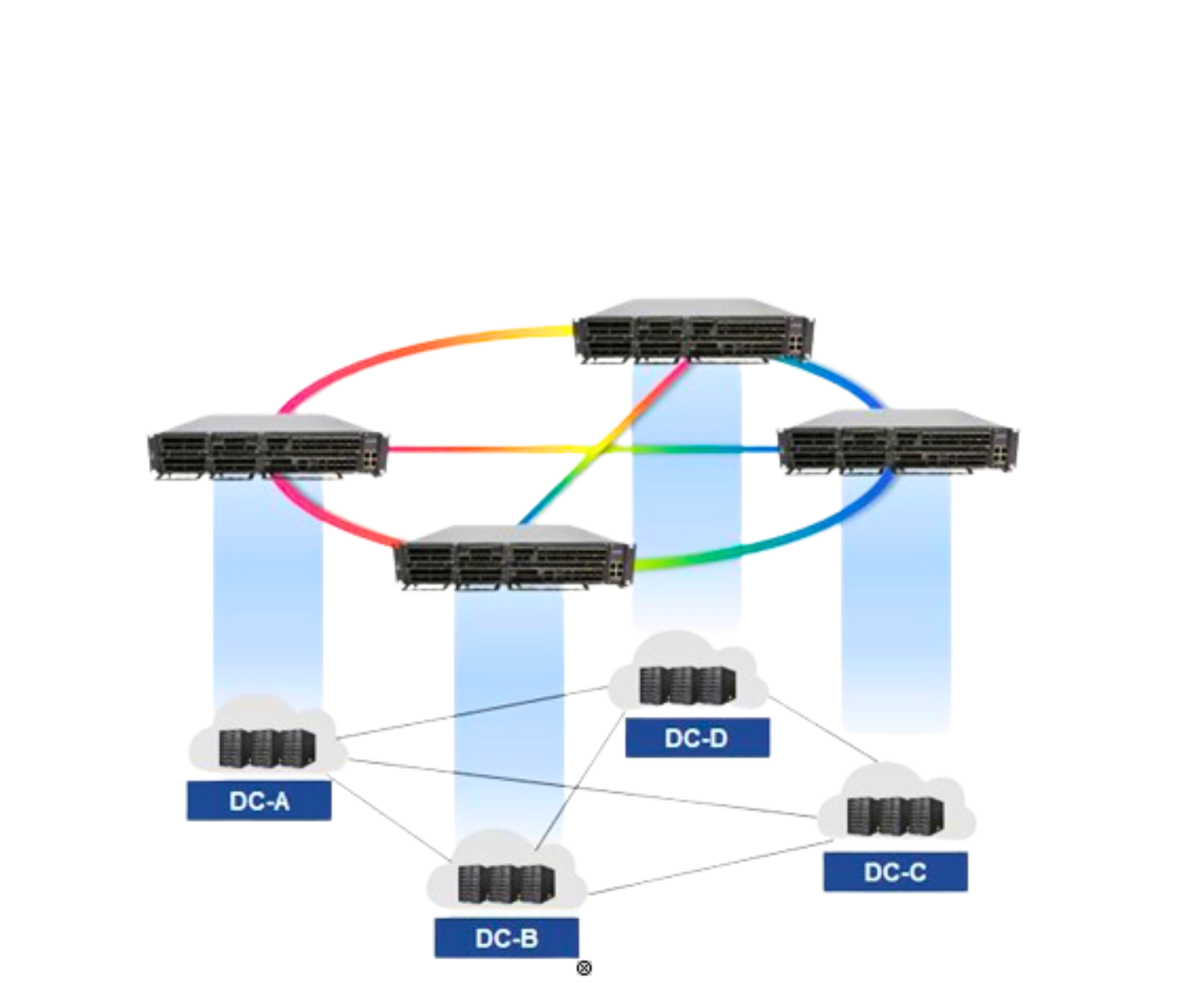

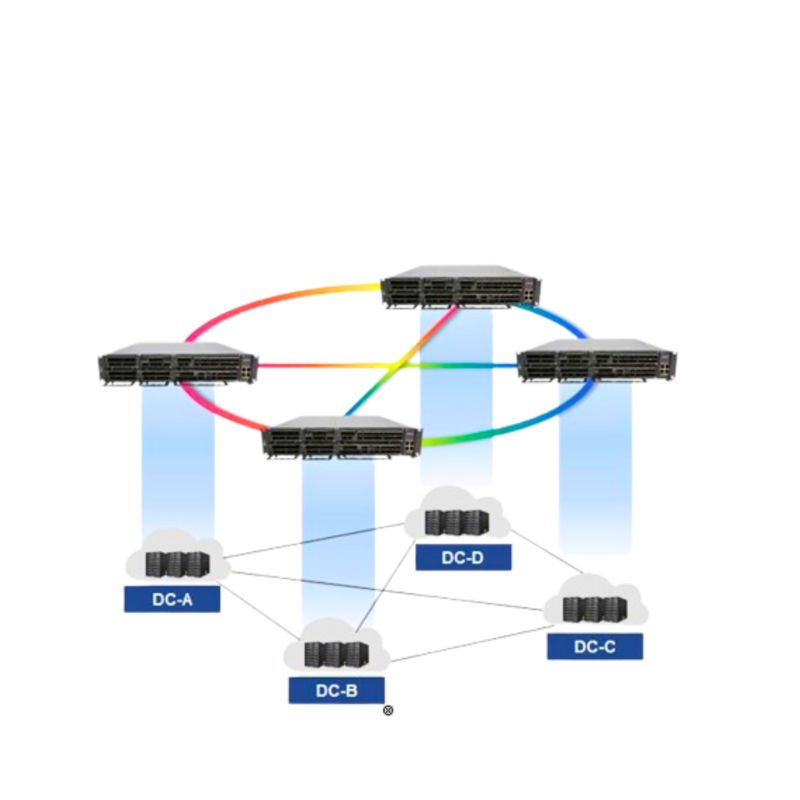

- Medium / large network：stacking of multiple electrical layers + multi-degree ROADM to form a ring network.
Product Specification:
| Parameter | Description |
|---|---|
| Chassis | |
| Dimensions (H x W x D) | 2U: 88 mm (H) × 446 mm (W) × 450 mm (D) |
| Maximum capacity | 3.2 Tbit/s |
| Number of service card slots | 8 |
| Applicable cabinets | 19" cabinet 600mm or deeper |
| Line-side port | |
| Rate | |
| - 100G (PDM_QPSK) programmable | |
| - 200G (PDM_QPSK) programmable | |
| - 200G (PDM_8QAM) programmable | |
| - 200G (PDM_16QAM) programmable | |
| - 400G (PDM_16QAM) programmable | |
| Optical module | Pluggable QSFP28 / QSFP-DD or CFP2, wavelength adjustable |
| Client-side port | |
| Service type | 10GE, 100GE, 100GE FlexE(Unware), 400GE, OTU2, OTU4, STM-64 and 10GE WAN |
| Optical module | Pluggable SFP+, QSFP28 |
| Max. number of wavelengths | Fixed grid: 96 wavelengths @50 GHz |
| Channel spacing | Fixed grid: 50 GHz / 75 GHz / 100 GHz / 150 GHz |
| Central frequency range | 191.35 GHz ~ 196.1 GHz |
| Central wavelength range | 1528.77 nm ~ 1566.73 nm |
| Protection function | - Optical line protection (OLP) |
| - Optical multiplexed segment protection (OMSP) | |
| - Optical channel protection (OCHP) | |
| - SNCP protection (only P422 muxponder supported) | |
| Network management | |
| - Supports main controller 1+1 backup (optional) | |
| - Support CLI, Web LCT, NETCONF, GUI management platform based on B/S architecture | |
| - Support DCN communication based on OSC | |
| Power supply | |
| Back-up | Standard CRPS power supply 1+1 backup |
| AC | - Rated voltage range: 100 V AC～130 V AC (50/60Hz) or 200 V AC～240 V AC (50/60Hz) |
| - Max. voltage range: 90 V AC～264 V AC (45Hz~65Hz) | |
| HVDC | - Rated voltage range: 240 V HVDC |
| - Max. voltage range: 192 V HVDC～288 V HVDC | |
| DC | - Rated voltage range: -48 V DC/-60 V DC |
| - Max. voltage range: -40 V DC～-72 V DC | |
| Heat dissipation | |
| - Front inlet air and rear outlet air | |
| - 2+1 Fan unit backup | |
| Typical power consumption | <800W (Electric layer full match) |
| Environment | |
| Operating temperature | Short-term: -5℃～+45℃; Long-term: 0℃～40℃ |
| Storage temperature | -40℃～+70℃ |
| Humidity | 5%～95% (no condensation) |
