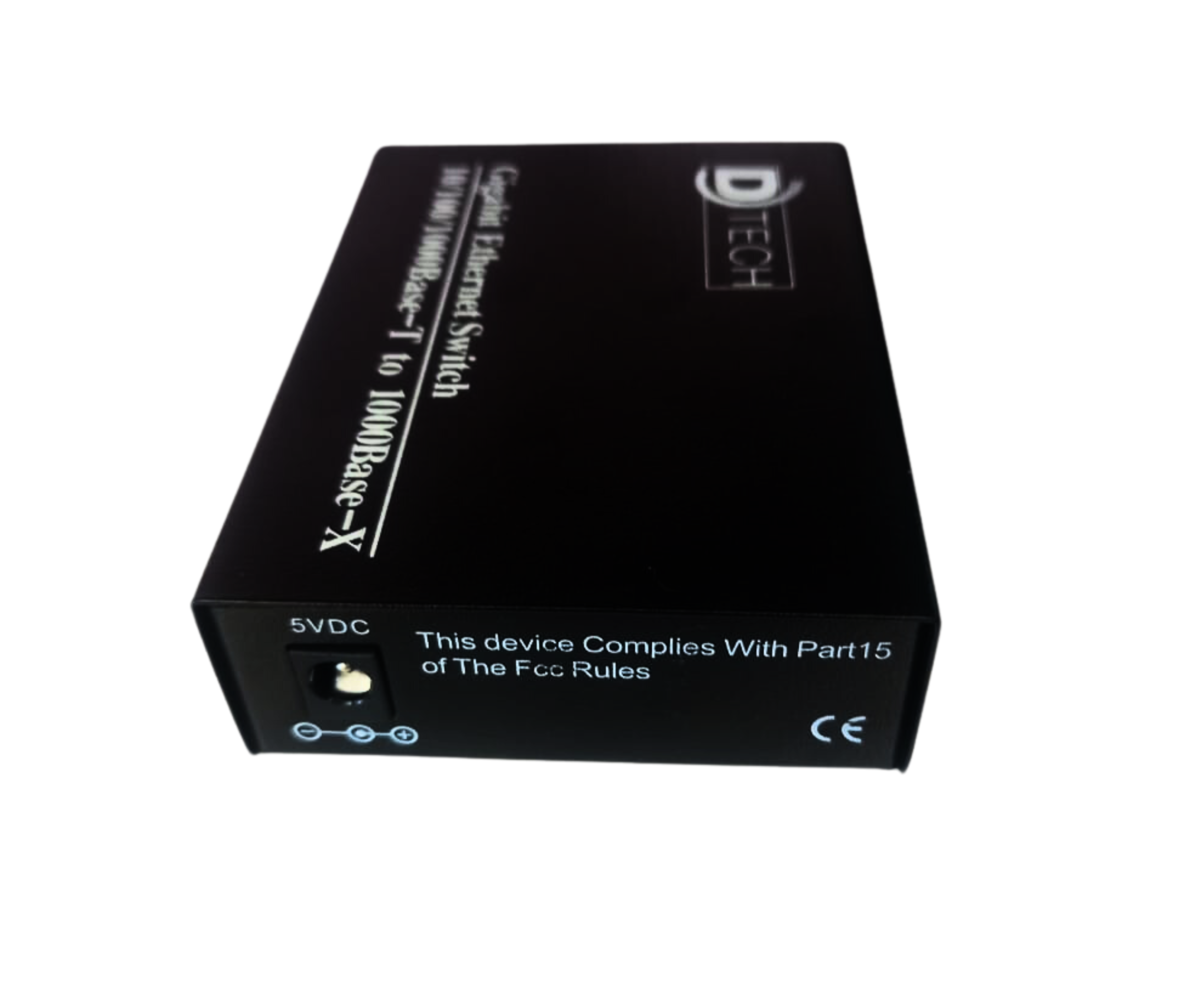

POE Media Converter 1G-1SFP-2RJ45 203

Discover our latest products and services

POE Media Converter 1G-1SFP-2RJ45 203

Rs 3251.85

(3 Reviews)

Product Info

Unit: pc(1)
Weight: 0.3000 kg
Product ID: 1643

Category	Specification
Model	16 ISFP 2BJ45 POE Switch
Product Type	Full Gigabit i+1 Fiber Switch
Fixed Ports	- 2×10/100/1000Base-TX RJ45 ports (Data)
	- 1×1000M integrated SFP
Network Protocol	IEEE 802.3, IEEE 802.3i (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3x, IEEE 802.3z (1000BASE-X)
Port Specification	10/100/1000Base-T (Auto)
Transmission Mode	Store and Forward (full wirespeed)
Bandwidth	250 Gbps
Packet Forwarding	2K packets/sec
MAC Address	2.5M entries
Buffer	8K
Transmission Distance	- 10BASE-T: Cat3/4/5 UTP (≤100m)
	- 100BASE-TX: Cat5+ UTP (≤100m)
	- 1000BASE-T: Cat6+ UTP (≤100m)
	- Single-mode fiber: ≤20km (single/dual fiber)
	- Multi-mode fiber: ≤550m (850nm) / ≤2km (1310nm)
Power Consumption	≤3W
LED Indicators	PWR (Power), SD/SPD1/FX (Fiber), SPD2/LPL (Link: 10/100/1000M), FDX (Fiber Data)
Power Supply	External DC 12V/0.5A
Operating Conditions	- Temperature: -10°C to +55°C
	- Humidity: 5% to 90% (Non-condensing)
Storage Conditions	- Temperature: -40°C to +75°C
	- Humidity: 5% to 95% (Non-condensing)
Dimensions	- Product: 70mm × 85mm × 25mm
	- Packaging: 85mm × 105mm × 65mm
Weight	Net: 0.2kg; Gross: 0.3kg
Installation	Desktop
Lightning Protection	3kV (8/20μs)
Ingress Protection	IP30
Certification	Not specified
Warranty	1 year (device only; accessories excluded)

Product Specifications

Warranty: 213-TRIAL-1 Year 68
Size: 171-TRIAL-70mm × 85mm × 25mm 245
Weight: 121-TRIAL-0.3Kg 270
Country of Origin: 83-TRIAL-China 189

Category	Specification
Model	16 ISFP 2BJ45 POE Switch
Product Type	Full Gigabit i+1 Fiber Switch
Fixed Ports	- 2×10/100/1000Base-TX RJ45 ports (Data)
	- 1×1000M integrated SFP
Network Protocol	IEEE 802.3, IEEE 802.3i (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3x, IEEE 802.3z (1000BASE-X)
Port Specification	10/100/1000Base-T (Auto)
Transmission Mode	Store and Forward (full wirespeed)
Bandwidth	250 Gbps
Packet Forwarding	2K packets/sec
MAC Address	2.5M entries
Buffer	8K
Transmission Distance	- 10BASE-T: Cat3/4/5 UTP (≤100m)
	- 100BASE-TX: Cat5+ UTP (≤100m)
	- 1000BASE-T: Cat6+ UTP (≤100m)
	- Single-mode fiber: ≤20km (single/dual fiber)
	- Multi-mode fiber: ≤550m (850nm) / ≤2km (1310nm)
Power Consumption	≤3W
LED Indicators	PWR (Power), SD/SPD1/FX (Fiber), SPD2/LPL (Link: 10/100/1000M), FDX (Fiber Data)
Power Supply	External DC 12V/0.5A
Operating Conditions	- Temperature: -10°C to +55°C
	- Humidity: 5% to 90% (Non-condensing)
Storage Conditions	- Temperature: -40°C to +75°C
	- Humidity: 5% to 95% (Non-condensing)
Dimensions	- Product: 70mm × 85mm × 25mm
	- Packaging: 85mm × 105mm × 65mm
Weight	Net: 0.2kg; Gross: 0.3kg
Installation	Desktop
Lightning Protection	3kV (8/20μs)
Ingress Protection	IP30
Certification	Not specified
Warranty	1 year (device only; accessories excluded)

Additional Specifications

Weight	0.3000 kg
Base Unit	pc(1)
Category	Networking Goods
SKU
Product Code	259
Trackable	Yes
Taxable	Yes
