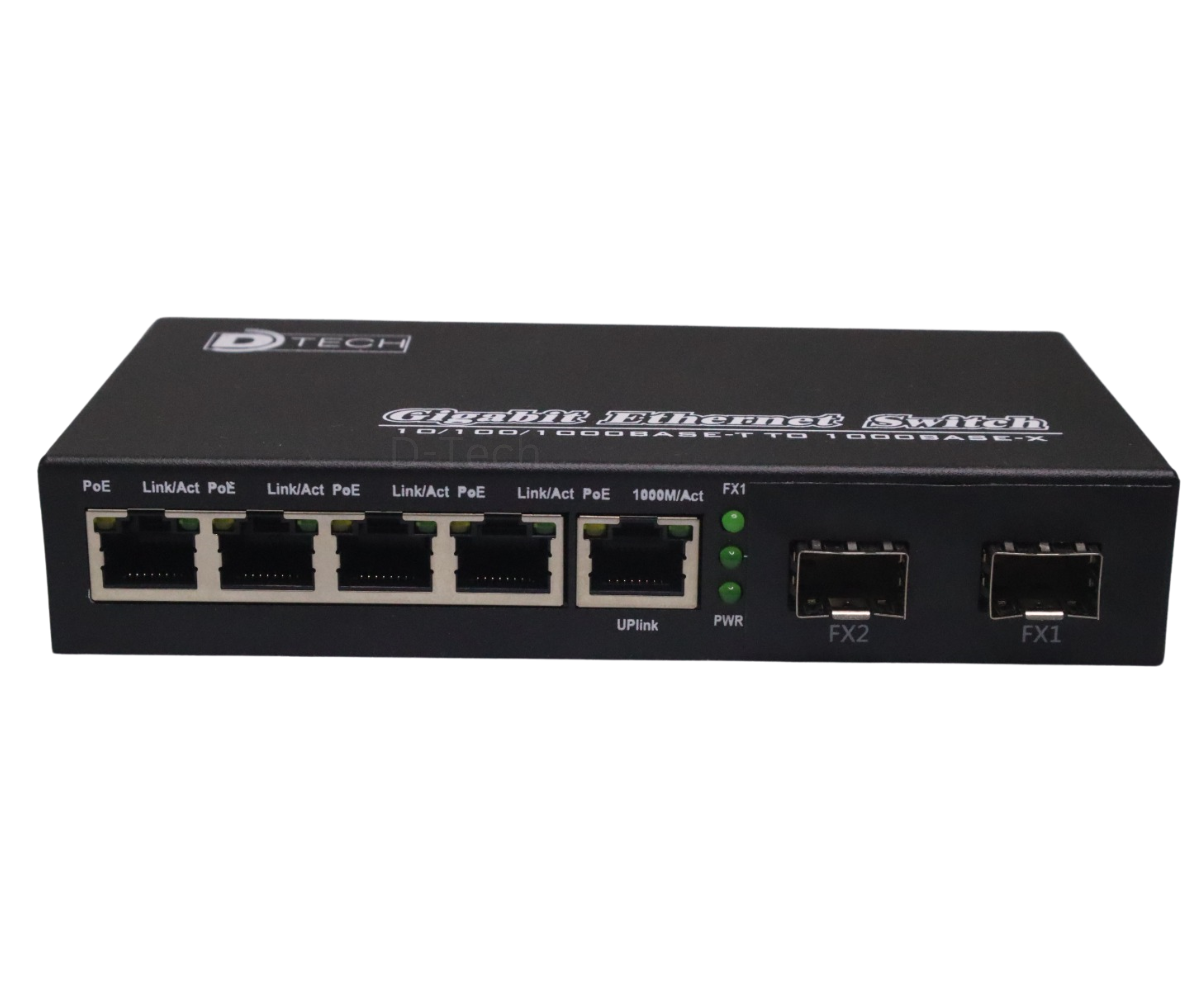

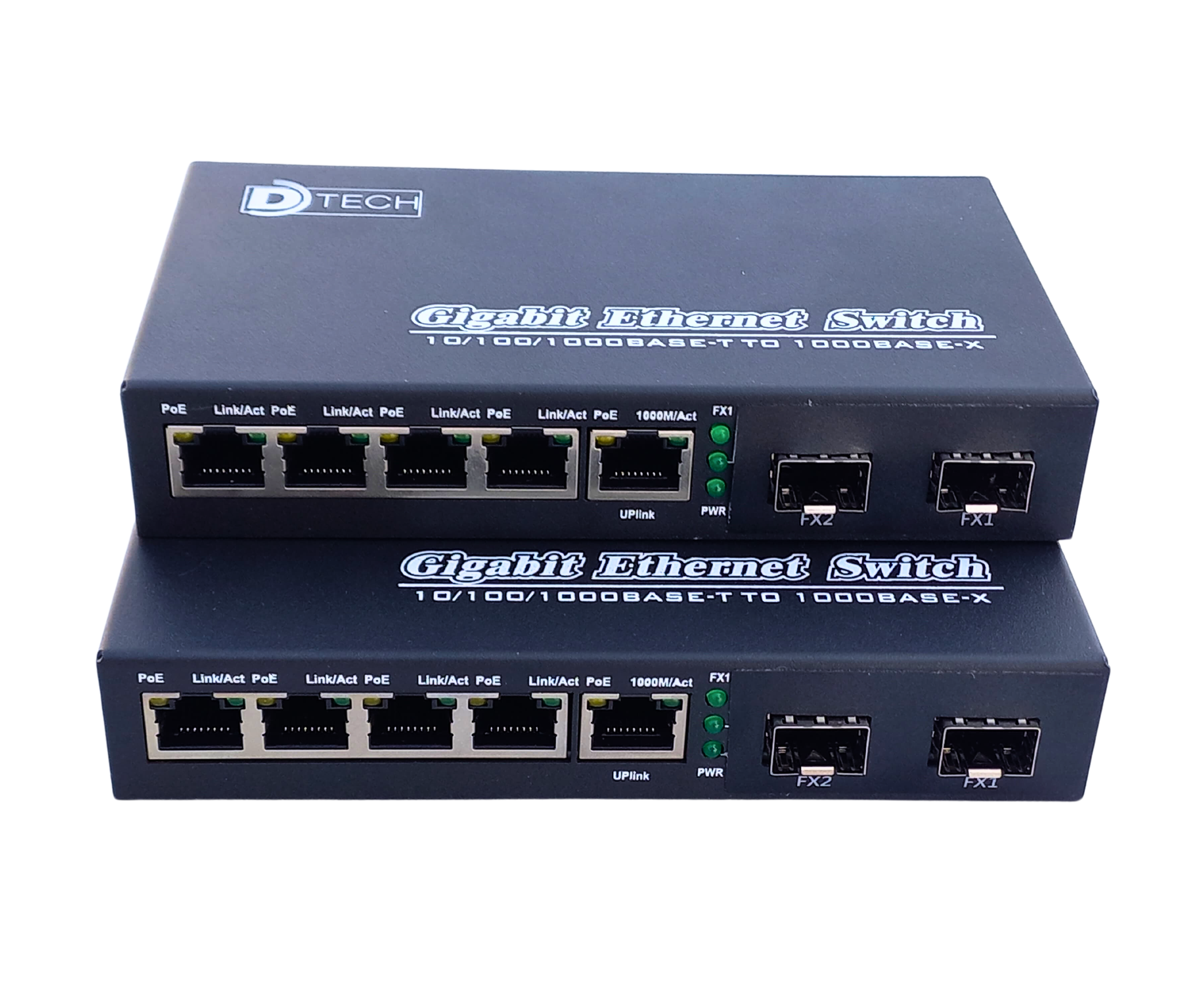

POE Media Converter 1G-2SFP-4RJ45 29

Discover our latest products and services

POE Media Converter 1G-2SFP-4RJ45 29

Rs 5203.54

(3 Reviews)

Product Info

Unit: pc(1)
Product ID: 1641

Product	Full Gigabit 1+1 Fiber Switch
Fixed Port	210/100/1000Base-TX RJ45 port (Data) 11000M Integrated SFP
Network Protocol	IEEE802.3 IEEE802.3i 10BASE-T IEEE802.3u100BASE-TX IEEE 802.3ab1000BASE-T IEEE802.3x IEEE 802.3z 1000BASE-X
Port Specification	10/100/1000BaseT（X）Auto
Transmission Mode	Store and Forward(full wirespeed)
Bandwidth	2Gbps
Packet Forwarding	4.32Mpps
MAC Address	2K
Buffer	2.5M
Transmission Distance	10BASE-T ： Cat3,4,5 UTP(≤250 meter) 100BASE-TX ： Cat5 or later UTP(150 meter) 1000BASE-TX ： Cat6 or later UTP(150 meter) Single mode single fiber(MAX 20KM) Single mode double fiber (MAX 20KM) Multiple mode double fiber(MAX 850M/2KM) Optional 3-80KM SFP
Watt	≤3W；
LED Indicator	PWR:Power LED SD/SPD1/FX:(Fiber LED） SPD2/TP:(Link LED=10/100M Link、1000M=Gigabit Link） FDX:(Fiber data LED)
Power	External power DC 12V 0.5A
Operating Temperature/Humidity	-10～+55°C；5%～90% RH Non coagulation
Storage Temperature/Humidity	-40～+75°C；5%～95% RH Non coagulation
Product size/Packing size（LWH）	70mm95mm25mm 105mm105mm65mm
N.W/G.W（kg）	0.2kg/0.3kg
Installation	Desktop
Lightning Protection level	3KV 8/20us； IP30
Certificate
Warranty	Whole device for 1 year(Accessories not included)

Product Specifications

Warranty: 128-TRIAL-1 Year 193

Product	Full Gigabit 1+1 Fiber Switch
Fixed Port	210/100/1000Base-TX RJ45 port (Data) 11000M Integrated SFP
Network Protocol	IEEE802.3 IEEE802.3i 10BASE-T IEEE802.3u100BASE-TX IEEE 802.3ab1000BASE-T IEEE802.3x IEEE 802.3z 1000BASE-X
Port Specification	10/100/1000BaseT（X）Auto
Transmission Mode	Store and Forward(full wirespeed)
Bandwidth	2Gbps
Packet Forwarding	4.32Mpps
MAC Address	2K
Buffer	2.5M
Transmission Distance	10BASE-T ： Cat3,4,5 UTP(≤250 meter) 100BASE-TX ： Cat5 or later UTP(150 meter) 1000BASE-TX ： Cat6 or later UTP(150 meter) Single mode single fiber(MAX 20KM) Single mode double fiber (MAX 20KM) Multiple mode double fiber(MAX 850M/2KM) Optional 3-80KM SFP
Watt	≤3W；
LED Indicator	PWR:Power LED SD/SPD1/FX:(Fiber LED） SPD2/TP:(Link LED=10/100M Link、1000M=Gigabit Link） FDX:(Fiber data LED)
Power	External power DC 12V 0.5A
Operating Temperature/Humidity	-10～+55°C；5%～90% RH Non coagulation
Storage Temperature/Humidity	-40～+75°C；5%～95% RH Non coagulation
Product size/Packing size（LWH）	70mm95mm25mm 105mm105mm65mm
N.W/G.W（kg）	0.2kg/0.3kg
Installation	Desktop
Lightning Protection level	3KV 8/20us； IP30
Certificate
Warranty	Whole device for 1 year(Accessories not included)

Additional Specifications

Base Unit	pc(1)
Category	Networking Goods
SKU
Product Code	94
Trackable	Yes
Taxable	Yes
