Product overview:

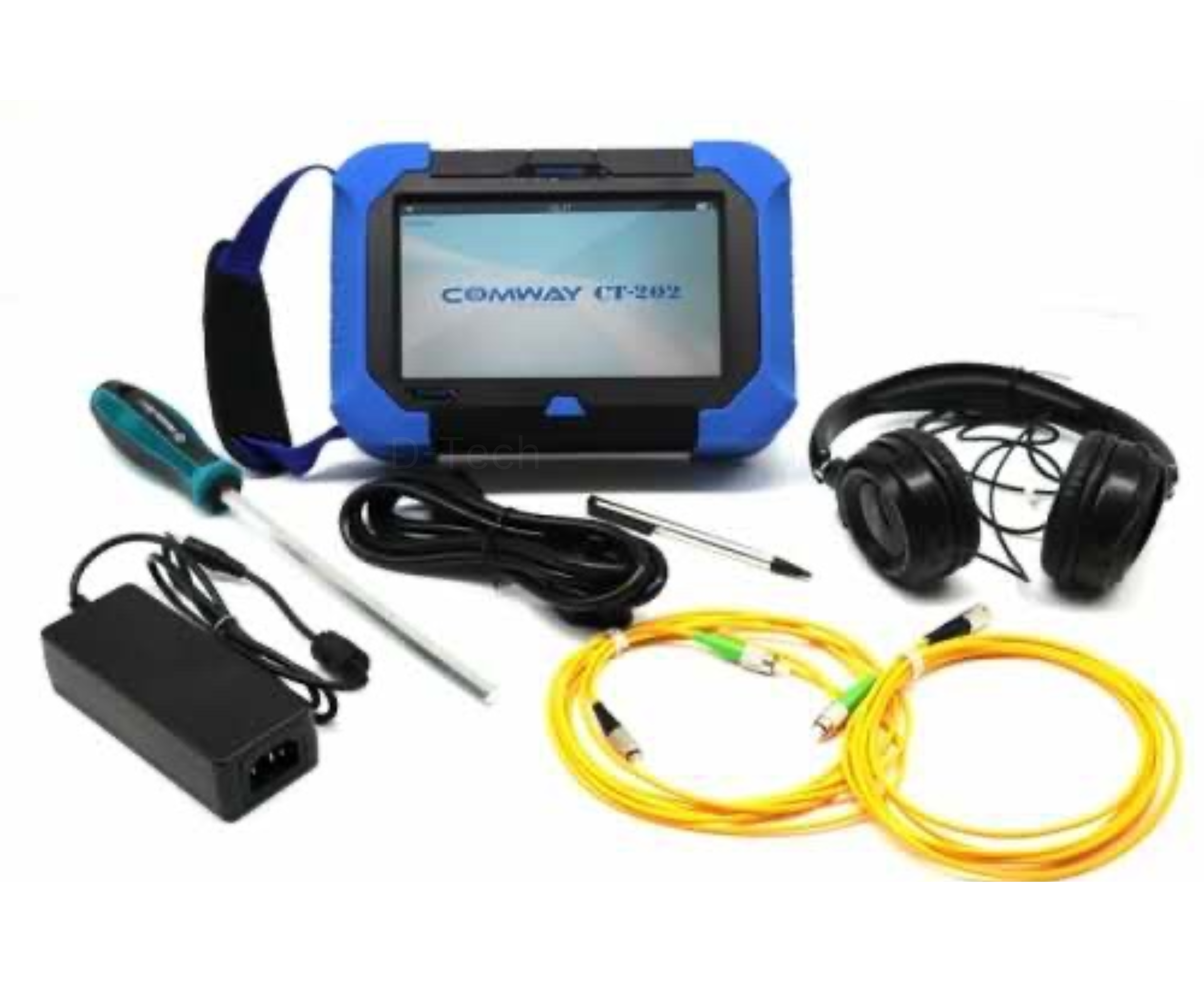

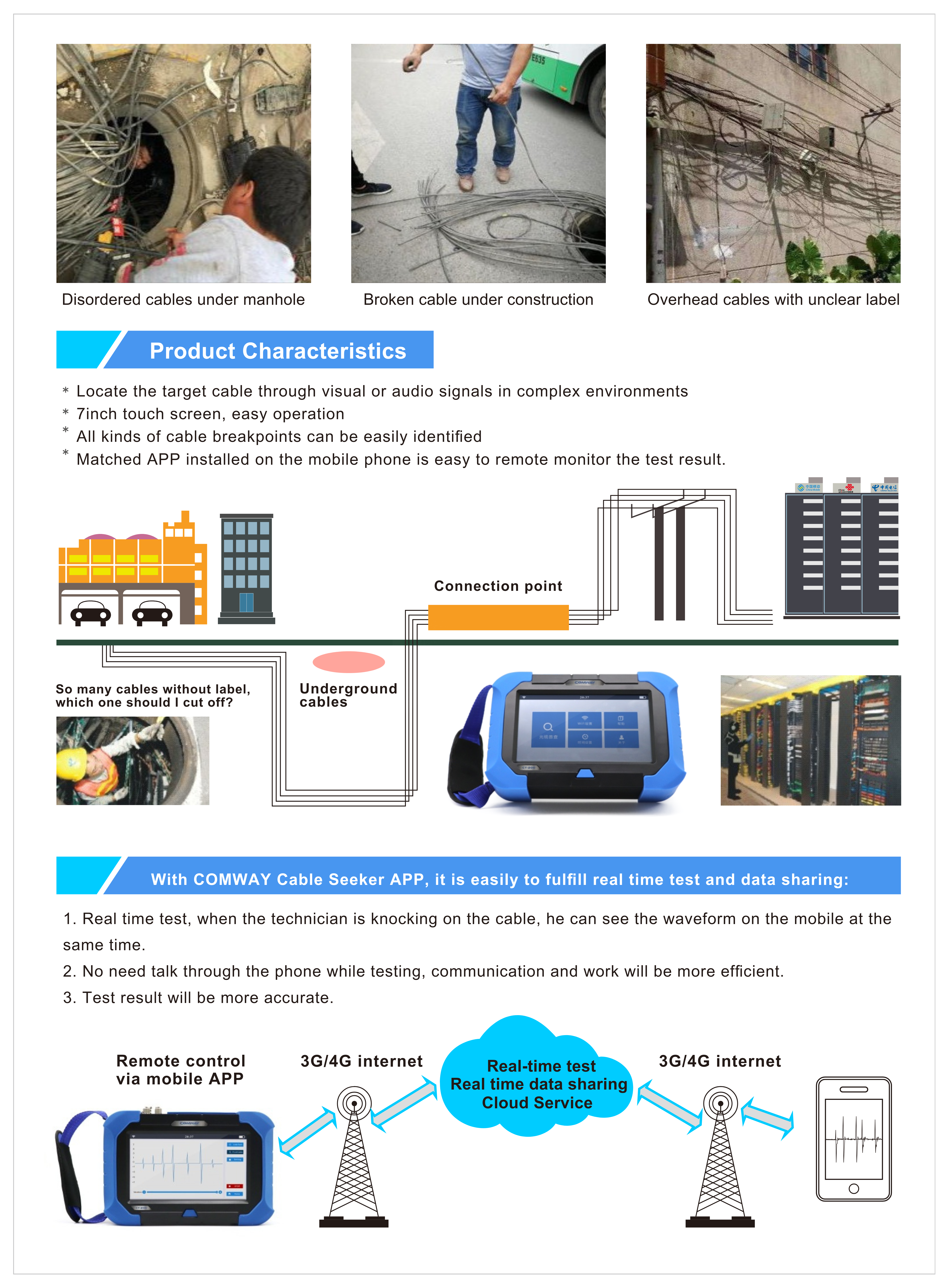

Under the complex wiring environment, it is difficult to locate faults during the construction and long-term use of optical cables.With COMWAY cable seeker，On basis of optical elastic effect, knock on the cables, the bending or sloshing signals will be converted into visual and audio signals by coherent demodulation and shown on the cable COMWAY seeker in waveform and be heard by the technician, then help the technician to track and identify the target cable quickly. This is a non-destructive technology to accurately locate and identify the target optical cable in the environment of manhole, wells, tunnel, pipe-lines and overhead poles.

Technical parameter:

Parameter	CT-201	CT-202	CT-204
Measurement	Single fiber testing (No Loop)	Single fiber testing (No Loop)	Single fiber testing (No Loop)
Wavelength	1550nm	1550nm	1550nm
Test distance	20km PC/UPC	20km	40km PC/UPC
Connector at the end	broken cable	broken cable	broken cable
Connector on the machine	FC/APC	FC/APC	FC/APC
Display	7inch LCD touch screen	Real-time waveform display	Real-time waveform display
Output model	Real-time audio prompt	Real-time audio prompt	Real-time audio prompt
Battery capacity	11.1V, 6400mAh, continuous work ≥12 hours	11.1V, 6400mAh, continuous work ≥12 hours	11.1V, 6400mAh, continuous work ≥12 hours
Power supply	DC 15V/4A	DC 15V/4A	DC 15V/4A
Dimensions (H×W×L)	70148230mm	70148230mm	70148230mm
Weight	≤1.5Kg	≤1.5Kg	≤1.5Kg
Working temperature	-10-55°C	-10-55°C	-10-55°C
Storage temperature	-20-70°C	-20-70°C	-20-70°C
