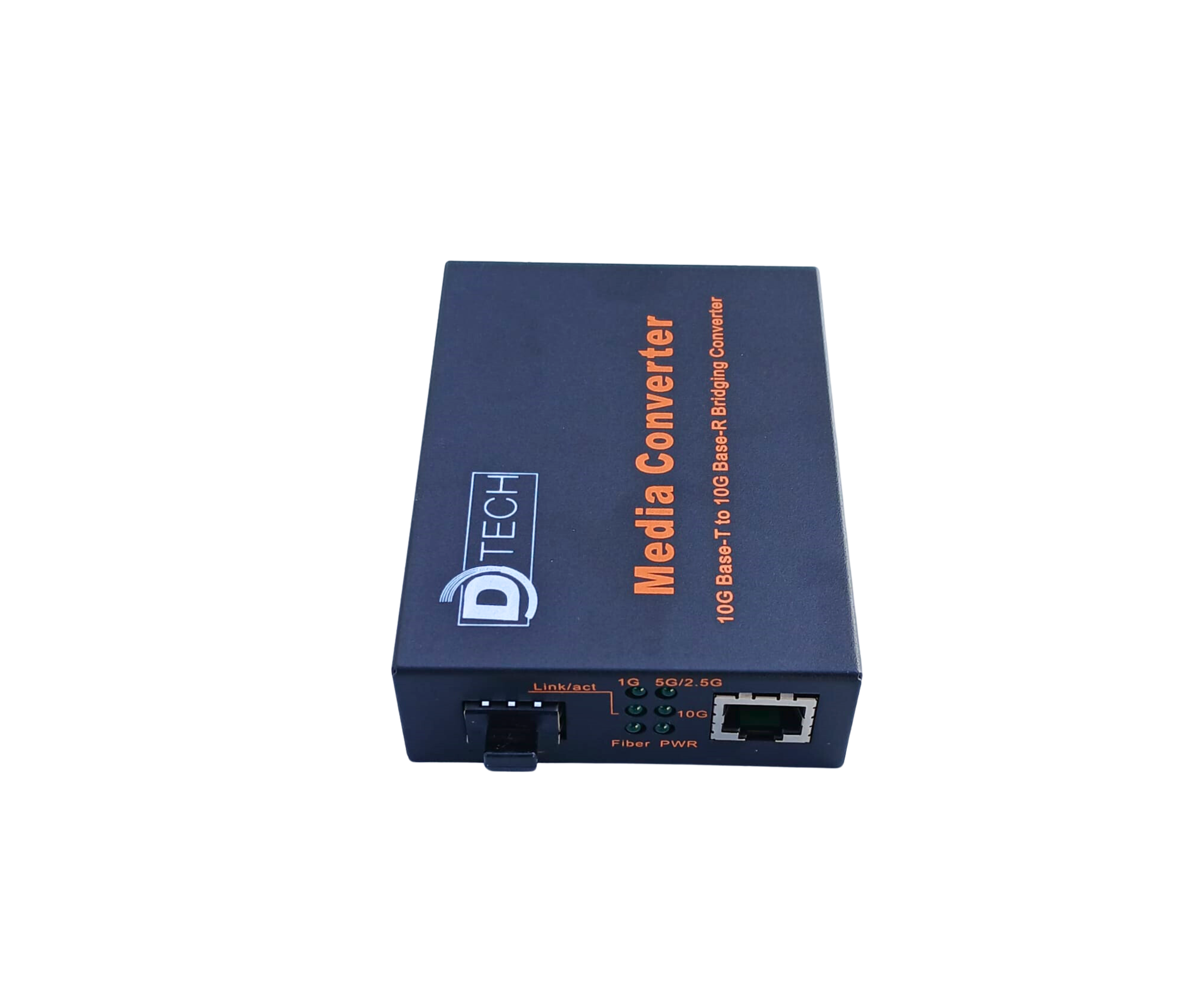

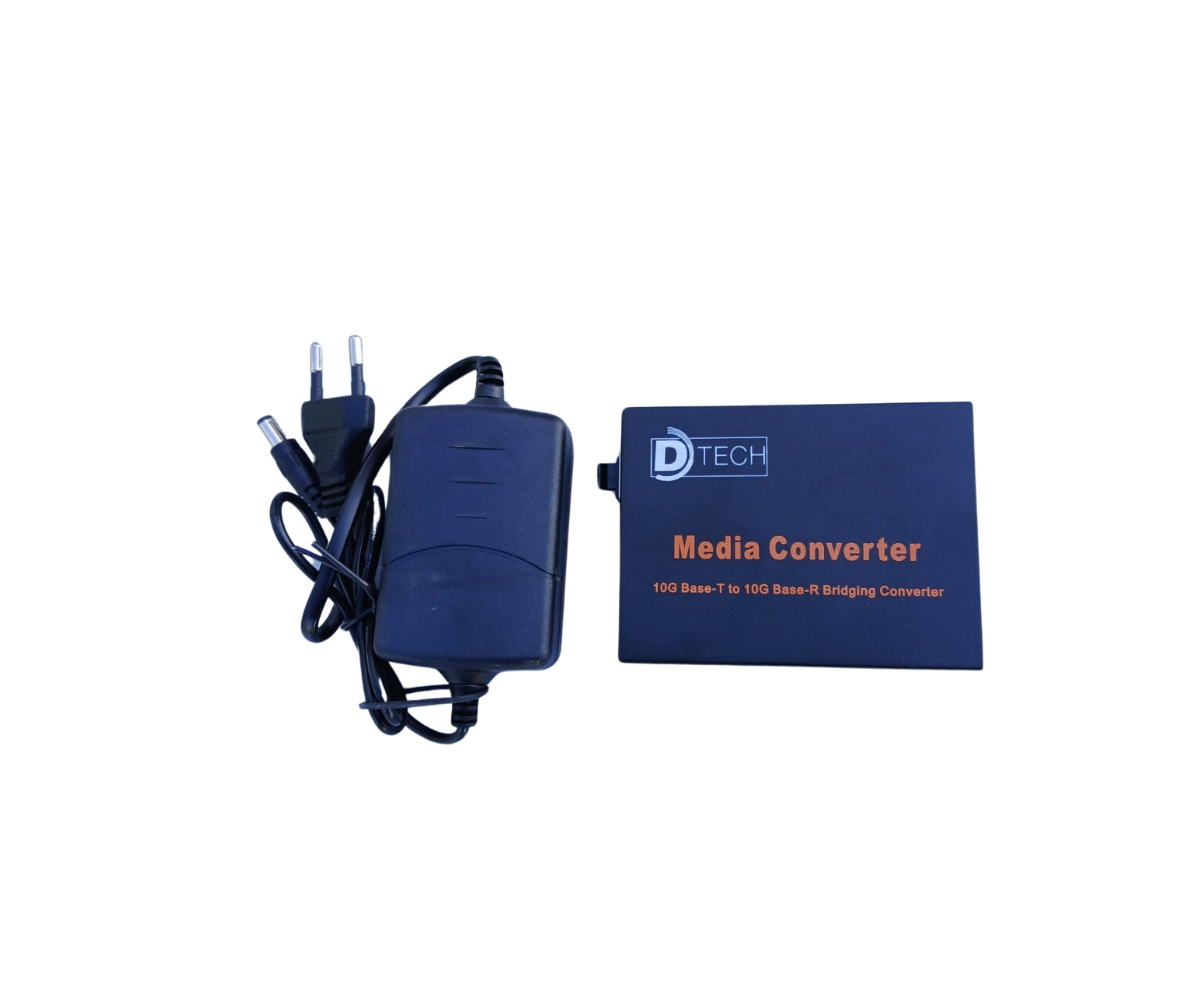

10G Ethernet Media Converter
Description
10Gbps Ethernet media converter between SFP+ to UTP.No matter what kind of media applied for 10Gbps Ethernet,it used to be the fiber as the media for transmission.10G Ethernet standalone and module cards, brings you the best and simple solution for the Ethernet conversion between media of copper wire and fiber, with the speed of 10G.
Mainly Applications
●Connection between fiber to copper 10Gbps Ethernet equipment function as fiber-to-copper media converter for long distance transmission
●Media converter for network backbone(SAN, LAN, MAN)
●Can be applied in Telecommunication room, R&D laboratory, Data center, and etc.
●Providing protections against lighting and static electricity for Ethernet network and the network main system
●Providing additional network management options
Features
●Transparent Transport and very low delay
●Support ITUT prescribed DWDM/CWDM wavelength
●Support DMI function for SFP+ fiber module
●Support Loop-back test function
●Economic In-band Management function
●Powerful Network Management function
●Support hot plugging
●Full State Led display
●Easy installation
●UTP cable length detection（only RJ45 interface）
Key Advantages
Provide reliable long-distance connection
Fast connection with multi-function
Small portable size case
Plug and play
Specification
|
Module Card |
Type |
|
|||
|
Interface |
Port A |
SFP+ |
|
||
|
Port B |
RJ45 |
|
|||
|
Transmission Speed |
10G |
|
|||
|
Data |
Technical Indexes |
|
|
||
|
Protocols |
IEEE802.3an(10Gbase-T),IEEE802.3ae(10Gbase-SR/LR/ER/ZR) |
Access Type |
10G LAN |
||
|
Transmission Distance |
SFP+ module: Up to 80Km 10Gbase-T: 100meters Cat .6a cable |
||||
|
Maximum Packet Forwarding Rate |
14,880,950/S |
||||
|
Power requirement |

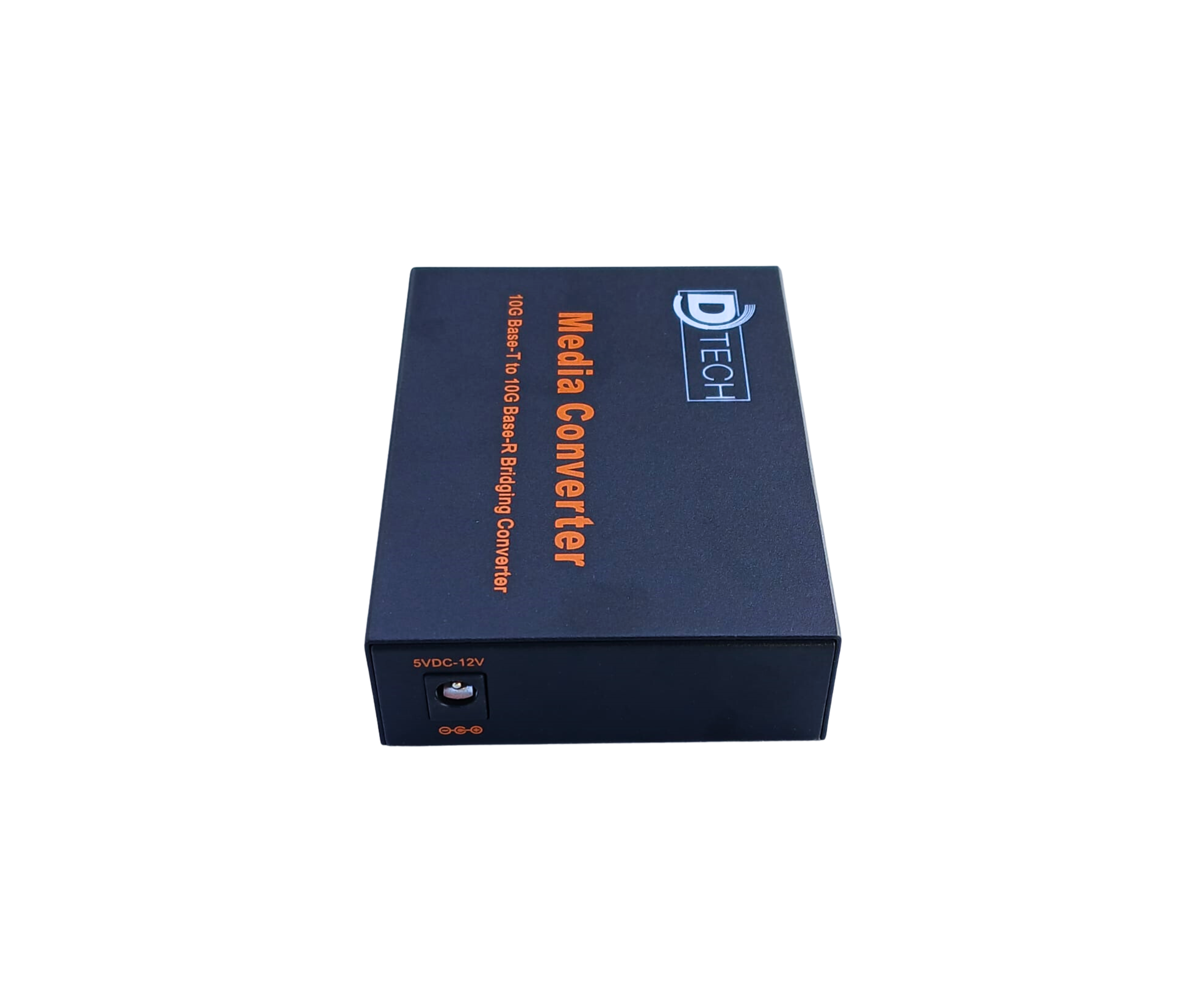

Standalone: DC5-12V Power consumption: ≤9W |
||||
|
Work Environment |
Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90% (non-condensing) |
||||
Order Information
|
Model |
Feature |
|
WH-10GMC -SFP+ |
Standalone SFP+ to UTP 10G Media Converter |
